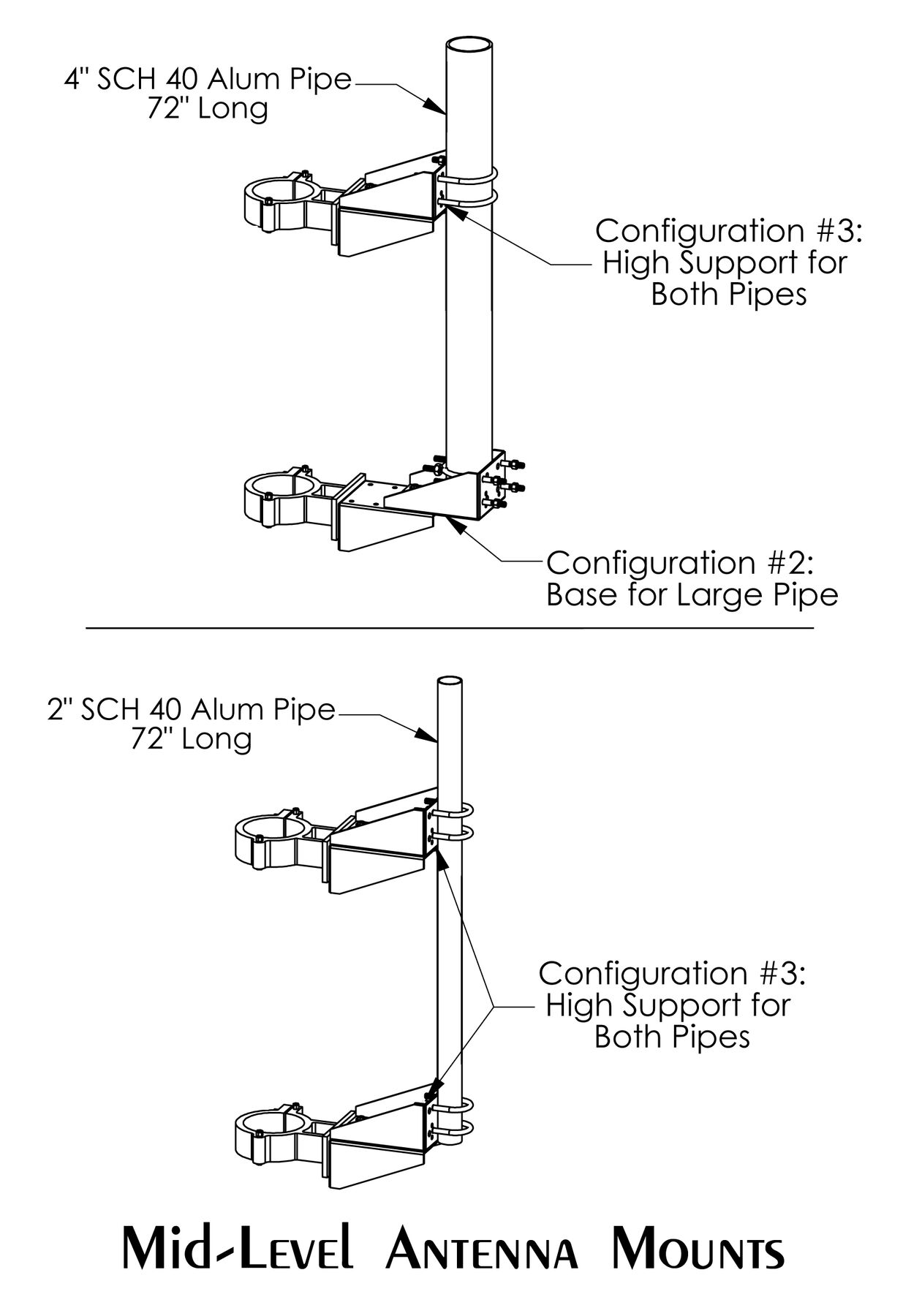

Mid-Level Antenna Mount

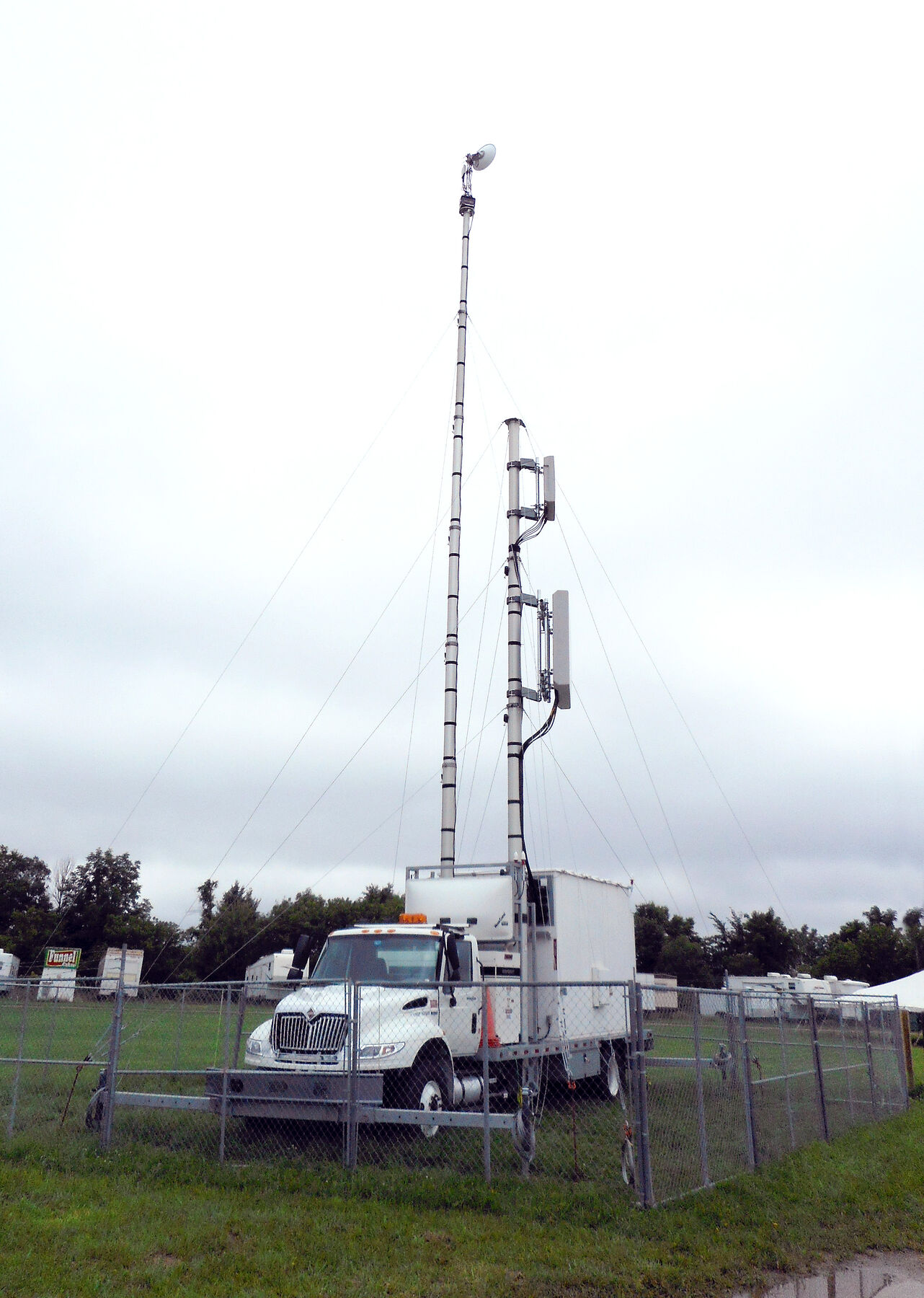

Mid-level mounts are used when additional antennas must be deployed but cannot be placed at the top of the mast for various reasons. By using the range of mast tube clamps available from Will-Burt, Sun West has developed several mounting solutions that allow antennas and/or radios to be installed below the mast’s top section. This approach keeps the top of the mast open for other equipment, such as a microwave link or a MatSing spherical antenna.

Click On The Part # to View Each Drawing

S068991 6' Mid-Level 3-Sector Drop (Mounts to Most Will-Burt Masts)

SW-6670-A 10' 3-Sector Mount For Will-Burt 10.3-60 Mast (5.25" OR 6.00" Mast Tubes)
Mounts At Top Of Mast and 1st or 2nd Mast Tube

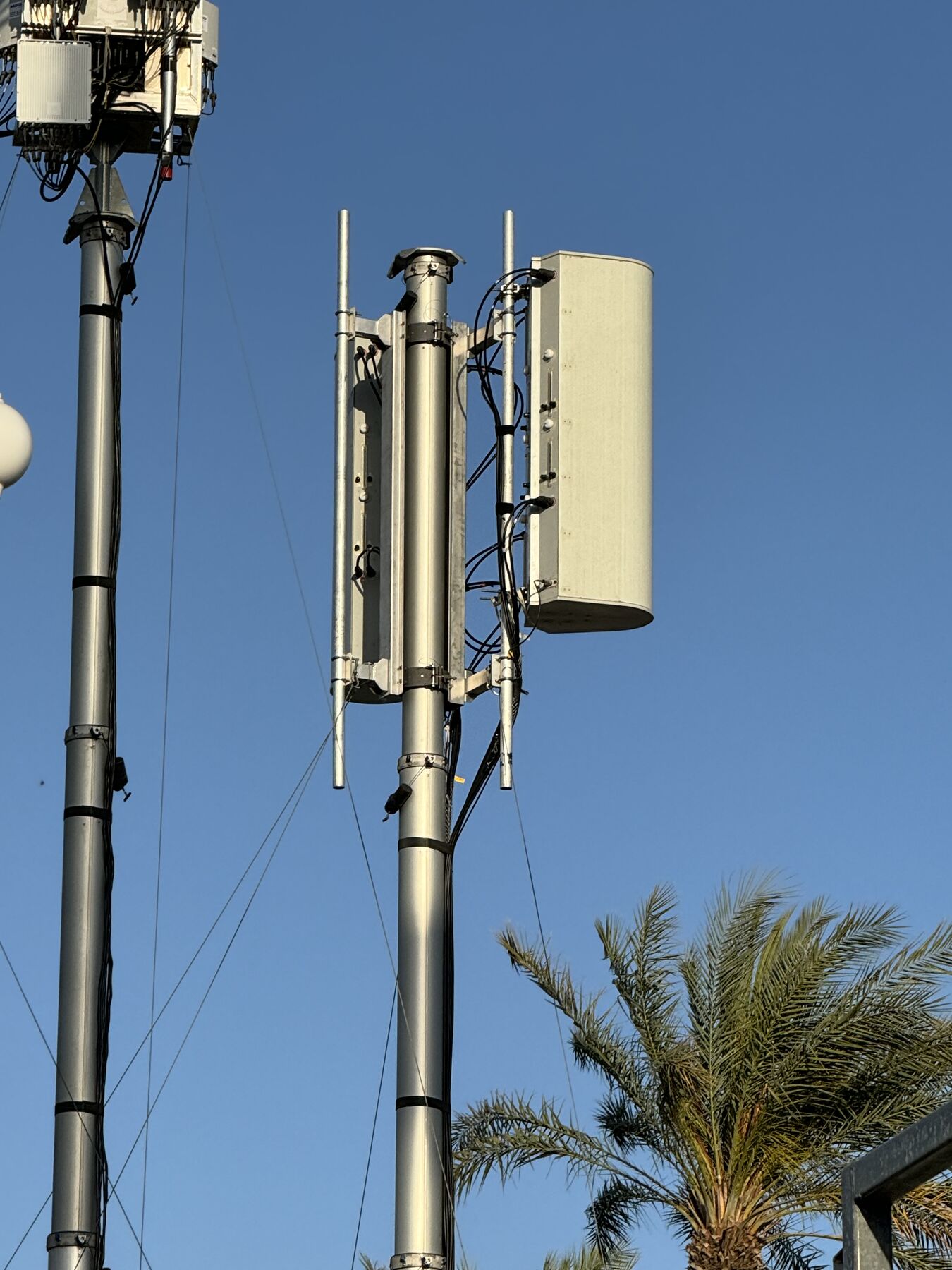

SW-6671-A 10' 3-Sector Mount For Will-Burt 11.3-59 Mass (7.50" OR 8.25" Mast Tubes)
Mounts At Top Of Mast and 1st or 2nd Mast Tube

SW-6551-A 10' Mid-Level 3-Sector Mount For 10.3-60 Mast (5.25" OR 6.00" Tubes)

S111470 10' Mid-Level 3-Sector Mount For 11.3-59 Mast (7.50" OR 8.25" Tubes)
